Push-pull filter cartridge - multi-stage filtration smoking machine

FES350P & FES400

1Spark Arrestor Mesh (optional)

Block open flame sources such as sparks

and sparks in the smoke

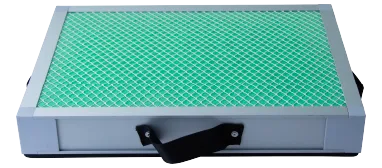

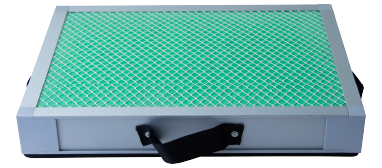

2Pre-filter
(optional reusable washable material)

Filter dust, debris and other large particles(PM60)

Not washable

Washable

3HEPA Filter

(which can be combined as needed)

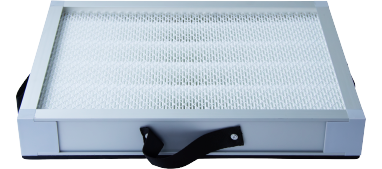

H13 HEPA Filter

Filter dust, asbestos and other fine particles and Adsorption of tar and other substances (≥0.3μm)

Activated Carbon Filter

Filter flue gas and harmful gas

FES600/800/1200/1800

1Spark Arrestor Mesh (optional)

Block open flame sources such as sparks

and sparks in the smoke

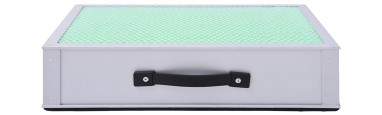

2Pre-filter
(optional reusable washable material)

Filter dust, debris and other large particles(PM60)

Not washable

Washable

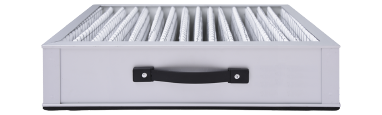

3HEPA Filter

(4 layers in total, which can be combined as needed)

Oil-absorbing filter

Filter oil stains and liquids

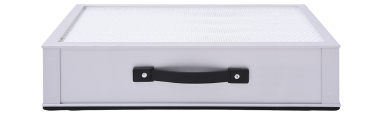

H13 HEPA Filter

Filter dust, asbestos and other fine particles and Adsorption of tar and other substances (≥0.3μm)

Activated Carbon Filter

Filter flue gas and harmful gas

FES350P

Machine*1

(optional)Spark Arrestor Mesh*1
Pre-filter*1
Power Cord*1

1.4m hose*2
HEPA Filter (optional)*4
Connection Flange*2

FES400

Machine*1

(optional)Spark Arrestor Mesh*1
Pre-filter*1
Power Cord*1

1.4m hose*2
HEPA Filter (optional)*6
Connection Flange*2

FES600

Machine*1

(optional)Spark Arrestor Mesh*1
Pre-filter*1
Power Cord*1

1.4m hose*2
HEPA Filter (optional)*3
Connection Flange*2

FES800

Machine*1

(optional)Spark Arrestor Mesh*1
Pre-filter*1
Power Cord*1

1.4m hose*2
HEPA Filter (optional)*4
Connection Flange*2

FES1200-1800

Machine*1

(optional)Spark Arrestor Mesh*1
Pre-filter*1
Power Cord*1

1.4m hose*2
HEPA Filter (optional)*6
Connection Flange*2

APPLICATION SCENE

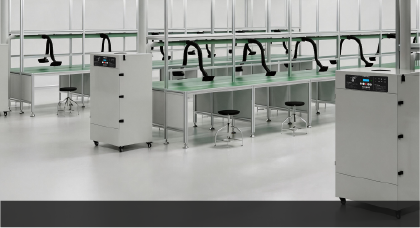

Multi-station smoke treatment

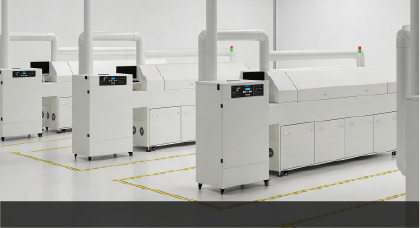

Fume Treatment for Large Reflow Soldering Machines

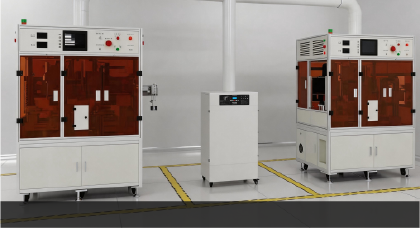

Large-scale machining fume and dust treatment

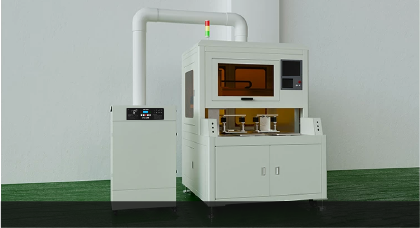

Laser processing smoke treatment

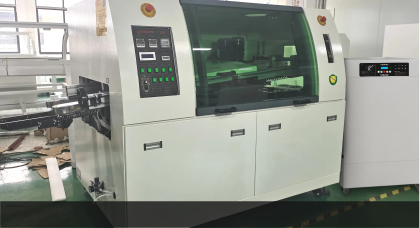

Fume Treatment for Medium and Large Wave Soldering Machines

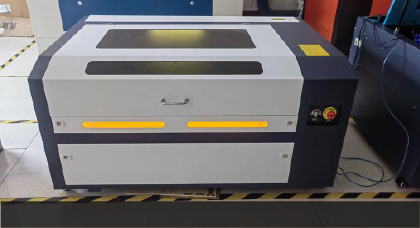

Medium and Large Enclosed Laser Processing Machines

RATED VOLTAGE
RATED POWER
INLET FLANGE DIAMETER
SYSTEM AIRFLOW
FILTER LAYERS
NOISE
ARM LENGTH
FILTRATION EFFCIENCY
OPERATING PANEL
MAIN UNIT DIMENSIONS
NET WEIGH

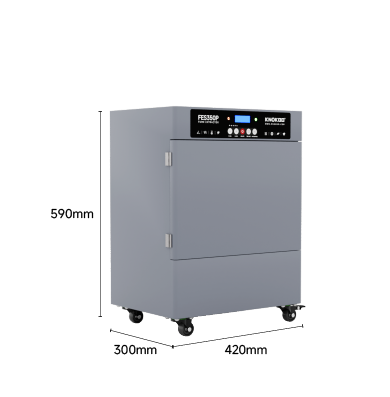

FES350P
BUY
AC 220V / 50Hz
350W
Φ100
410m^³/h
5-layer
≤65dB
1.4m
>0.3μm 99.97%
Button Switch
420*300*590mm
≈28.0kg
FES400
BUY
AC 220V / 50Hz
400W
Φ100
480m^³/h
7-layer
≤68dB
1.4m
>0.3μm 99.97%
Button Switch

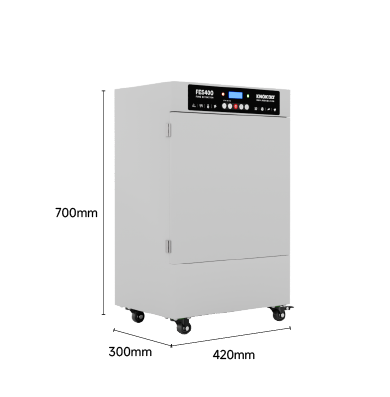

420*300*700mm
≈36.0kg
FES600
BUY
AC 220V / 50Hz
600W
Φ100
620m^³/h
5-layer
≤65dB
1.4m
>0.3μm 99.97%
Button Switch

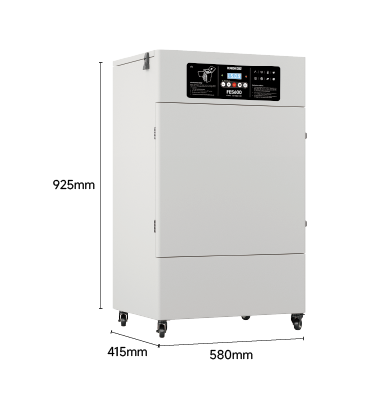

580*415*925mm
≈52.0kg

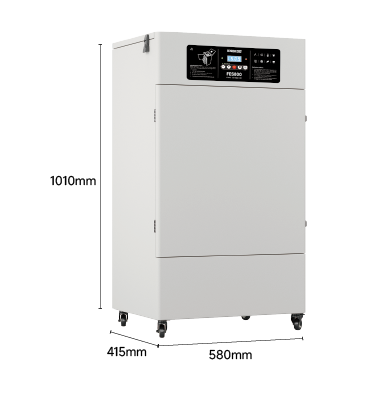

FES800
BUY
AC 220V / 50Hz
800W
Φ100
810m^³/h
6-layer
≤68dB
1.4m
>0.3μm 99.97%
Button Switch
580*415*1010mm
≈80.0kg
FES1200
BUY
AC 220V / 50Hz
1200W
Φ100
1320m^³/h
8-layer
≤65dB
3m
>0.3μm 99.97%
Button Switch

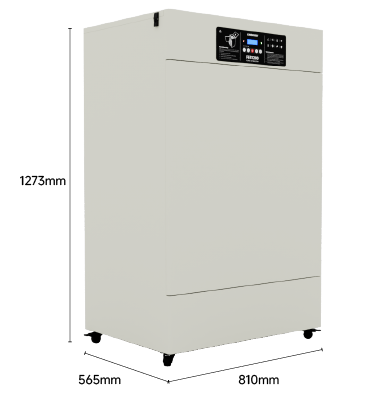

810*565*1273mm
≈145.0kg
FES1800
BUY
AC 220V / 50Hz
1800W
Φ100
1810m^³/h
8-layer
≤68dB
3m
>0.3μm 99.97%
Button Switch
810*565*1273mm
≈155.0kg

FES350P
The body adopts a fully metal integrated structure, with high-quality sheet metal spraying process, capable of resisting strong impact and vibration;
High-definition LED screen, capable of displaying multiple parameters simultaneously, provides a more intuitive experience;
The machine is equipped with ten-level adjustment, allowing for precise adjustment of the appropriate air volume according to needs, resulting in higher efficiency, energy saving, and environmental protection;
High-performance brushless motor, high speed, low noise, stable operation, capable of continuous work for 24 hours, long lifespan;
Aviation-grade aluminum turbine wind wheel, with strong wind power, stable operation and low noise, makes the working environment more comfortable and quieter;
The 4-layer progressive filtration design ensures more thorough filtration;
Filter element blockage alarm: Automatically detect changes in pressure difference across the filter layer and send audible and visual alarm signals when the filter element is blocked;
All filter elements can be replaced individually, effectively extending the lifespan of the main filter element, improving efficiency, and reducing usage costs;
The air is filtered through internal circulation, preventing indoor cooling or heating air from being discharged outside and maintaining the cleanliness of indoor air;
The bottom of the machine is equipped with silent PU wheels with locking function, which facilitates adjustment and movement according to needs, saving effort and providing peace of mind;
The disassembly and assembly can be completed in three steps, making installation simple and eliminating the need for professional technicians for maintenance, thus saving manpower and material resources.

FES400
The body adopts a fully metal integrated structure, with high-quality sheet metal spraying process, capable of resisting strong impact and vibration;
High-definition LED screen, capable of displaying multiple parameters simultaneously, provides a more intuitive experience;
The machine is equipped with ten-level adjustment, allowing for precise adjustment of the appropriate air volume according to needs, resulting in higher efficiency, energy saving, and environmental protection;
High-performance brushless motor, high speed, low noise, stable operation, capable of continuous work for 24 hours, long lifespan;
Aviation-grade aluminum turbine wind wheel, with strong wind power, stable operation and low noise, makes the working environment more comfortable and quieter;
The 6-layer progressive filtration design ensures more thorough filtration;
Filter element blockage alarm: Automatically detect changes in pressure difference across the filter layer and send audible and visual alarm signals when the filter element is blocked;
All filter elements can be replaced individually, effectively extending the lifespan of the main filter element, improving efficiency, and reducing usage costs;
The air is filtered through internal circulation, preventing indoor cooling or heating air from being discharged outside and maintaining the cleanliness of indoor air;
The bottom of the machine is equipped with silent PU wheels with locking function, which facilitates adjustment and movement according to needs, saving effort and providing peace of mind;
The disassembly and assembly can be completed in three steps, making installation simple and eliminating the need for professional technicians for maintenance, thus saving manpower and material resources.

FES600
The FES600 is a medium-sized smoke purifier with an attractive appearance, multi-stage filtration, and a small footprint. It is generally used in places with a large amount of smoke and a strong odor, such as tin furnaces, argon arc welding, reflow soldering, wave soldering, and 1 to 6 manual soldering stations.
1.The body adopts all-metal integrated structure, high quality sheet metal spray technology, can resist strong impact and vibration.
2.Digital display, more intuitive parameters, push-button operation, can be timed, and can be remotely operated with a remote control.
3.Ten levels of adjustment make it convenient to precisely adjust the appropriate air volume as needed, which is more efficient, energy-saving and environmentally friendly.
4.High-performance brushless motor, high speed, low noise, stable operation, capable of continuous 24-hour operation, and long service life.
5.Aerospace-grade aluminum vortex wind turbine, with strong wind force, stable operation and low noise, makes the working environment more comfortable and quieter.
6.5-layer tower filtration design, with fireproof steel mesh added at the top, effectively intercepts laser sparks and ensures more thorough filtration.
7.Filter element clogging alarm, automatically detects the change in pressure difference of the filter layer, and issues an audible and visual alarm signal when the filter element is clogged.
8.The filter elements can all be replaced separately, effectively extending the service life of the main filter element, improving efficiency and reducing the usage cost.
9.Standard configuration: 110MM high-temperature resistant 3-meter expansion pipe, with good matching, simple and convenient connection, and long service life.
10.The air is filtered through internal circulation to prevent the indoor cold or warm air from being discharged to the outside and to maintain the cleanliness of the indoor air.
11.The bottom of the machine is equipped with a silent PU wheel with a locking function, which is convenient for adjustment and movement as needed, saving both effort and worry.
12.It can be assembled and used in just three steps after disassembly. The installation is simple and no professional technicians are needed for maintenance, saving human and material resources.

FES800
The FES800 is a medium-sized smoke purifier with an attractive appearance, multi-stage filtration, and a small footprint. It is generally used in large tin furnaces, argon arc welding, reflow soldering, wave soldering, and 1-to-8 manual soldering stations where there is a large amount of smoke and a strong odor.
1.The body adopts an all-metal integrated structure and high-quality sheet metal powder coating process.
2.It can resist strong impacts and vibrations.
3.Digital display, more intuitive parameters, push-button operation, can be timed, and can be remotely operated with a remote control.
4.With ten levels of adjustment, it is convenient to precisely adjust the appropriate air volume as needed, which is more efficient and energy-saving.
5.High-performance brushless motor, high speed, low noise, stable operation, capable of continuous 24-hour operation, and long service life.
6.Aerospace-grade aluminum vortex wind turbine, with strong wind force, stable operation and low noise, makes the working environment more comfortable and quieter.
7.The 6-layer tower filtration design, with fireproof steel mesh added at the top, effectively intercepts laser sparks and ensures more thorough filtration.
8.Filter element clogging alarm: Automatically detects changes in the pressure difference of the filter layer. When the filter element is clogged, it will issue an audible and visual alarm signal.
9.The filter elements can all be replaced separately, effectively extending the service life of the main filter element, improving efficiency and reducing the usage cost.
10.Standard equipped with 110MM high-temperature resistant 3-meter expansion pipe, it has good matching performance, simple and convenient connection, and a long service life.
11.The air is filtered through internal circulation to prevent the indoor cold or warm air from being discharged to the outside and to maintain the cleanliness of the indoor air.
12.The bottom of the machine is equipped with a silent PU wheel with a locking function, which is convenient for adjustment and movement as needed, saving both effort and worry.
13.It can be assembled and used in just three steps after disassembly. The installation is simple and no professional technicians are needed for maintenance, saving human and material resources.

FES1200/1800
These medium-to-large fume purifiers feature an attractive design, multi-stage filtration, and a compact footprint. They are typically used in environments generating significant volumes of pungent fumes—such as large solder pots, arc welding, reflow soldering, wave soldering, and multi-station manual soldering assembly lines.
1.Features an all-metal unibody structure with a high-quality powder-coated finish, designed to withstand strong impacts and vibrations;
2.Digital display for intuitive parameter monitoring; push-button controls with timer functionality and an included remote for convenient remote operation;
3.Ten-speed adjustment allows for precise airflow control to meet specific needs, enhancing efficiency while saving energy and protecting the environment;
4.Equipped with a high-performance brushless motor offering high speed, low noise, and stable operation; capable of continuous 24-hour duty with a long service life;
5.Aviation-grade aluminum turbine fan delivers powerful airflow with smooth, quiet operation, creating a more comfortable and peaceful working environment;
6.8-layer tower-style filtration design featuring a top-mounted fire-resistant steel mesh to effectively capture laser sparks and ensure thorough filtration;
7.Filter clogging alarm system automatically monitors pressure differential changes across filter layers, triggering an audible and visual alert when a blockage is detected;
8.Comes standard with a 3-meter, 150mm-diameter high-temperature resistant telescopic hose; offers excellent compatibility, easy connection, and long-lasting durability;
9.Individual filter elements can be replaced separately, effectively extending the life of the main filter, improving efficiency, and reducing operating costs;
10.Internal air recirculation filtration prevents the loss of indoor cooled or heated air to the outside while maintaining indoor air cleanliness;
11.Base-mounted silent PU casters with locking mechanisms allow for easy, effortless, and worry-free repositioning as needed;
12.Simple three-step assembly process; easy to set up without the need for professional maintenance personnel, saving both labor and resources.
